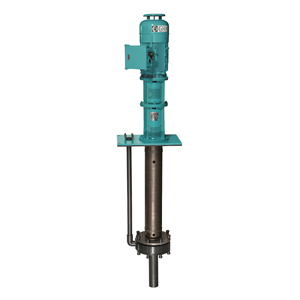

Type Series VKPF

Type Series VKPF

Vertical Chemical Submersible Pump

The single-stage radial centrifugal pump features a vertical design for wet installation
The suspension pipe can come in rubberised or Halar®-coated
Thick-walled, replaceable plastic components, optionally also conductive
Type VKPF: The shaft bearing is located in a protected, non-submerged area
Type VKP: The intermediate bearing is situated in the submerged range and can include internal or external flushing

For conveying aggressive, corrosive, or solid-laden liquids from basins, vessels, or sumps. The VKP type series also includes intermediate bearings for large immersion depths.

The vertical chemical pump, made of plastic for wet installation, is also available in a smaller version, the VKPF 25-160.

Flow rate	0.5 to 450 m³/h
Total head	up to 90 m
Installation depth	up to 1.5 m with cantilevered shaft
Main materials and application limits
UHMW-PE	up to 90 °C
PVDF	up to 115 °C
Directive 2014/34/EU (ATEX)
Equipment group	II
Equipment category	2G
Temperature class	T3

Vertical Chemical Submersible Pump

You may be looking for

Sigma/ 3 (Basic Type)

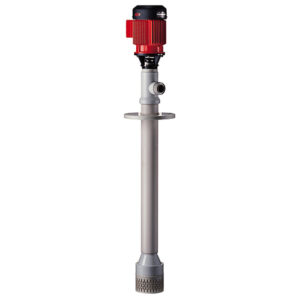

F 640 PP/PVDF / 185-230
