For conveying aggressive, corrosive or solid laden liquids, e.g. in flue gas desulphurization plants (FGD).

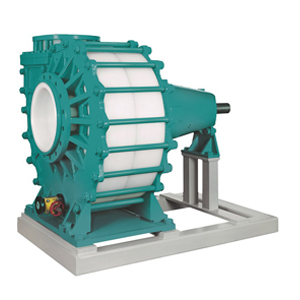

Type series SP
Process Pump with Mechanical Seal
- Single-stage radial centrifugal pump in process design
- Closed impeller specifically for abrasion loading
- Thick-walled, replaceable plastic components
- Metallic enclosure
- Single-acting WERNERT bellows seal
- Optional double-acting mechanical seal HRZ 13
- Metallic absorption of all pipe forces
- Grease or oil lubrication
| Flow rate | 500 to 2500 m³/h |
| Total head | up to 60 m |
| Main materials and application limits | |
| UHMW-PE | up to 90 °C |
| Directive 2014/34/EU (ATEX) | |
| Equipment group | II |
| Equipment category | 2G |
| Temperature class | T3 |
