For space-saving pumping of aggressive liquids containing solids or fibres out of tanks and basins.

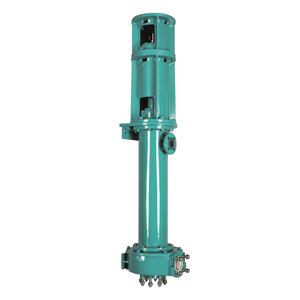

Type Series NKPF
Vertical Chemical Tank Pump
- Single-stage radial centrifugal pump in a vertical design for dry installation
- Space-saving external installation directly on tanks or containers
- Internal suspension pipe rubberised or Halar®-coated
- Thick-walled, replaceable plastic components
- Brief dry-running is possible, as no mechanical seal is required
- Shaft bearing is located in a protected, dry area location
| Flow rate | 0.5 to 450 m³/h |
| Total head | up to 90 m |
| Installation depth | up to 1.5 m with cantilevered shaft |
| Main materials and application limits | |
| UHMW-PE | up to 90 °C |
| PVDF | up to 115 °C |
| Directive 2014/34/EU (ATEX) | |
| Equipment group | II |
| Equipment category | 2G |
| Temperature class | T3 |
