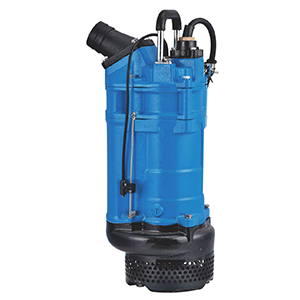

The SDE Series features a motor and pump body constructed from rigid cast iron for long-lasting durability. The design significantly increases maximum submersion depth, thanks to the mechanical seal’s high-pressure resistance. A semi-open impeller made from high-chrome alloy pairs with a ductile iron wear plate, delivering superior wear resistance. Effective motor cooling is achieved by casting the discharge channel as part of the motor housing.
Pump discharge sizes range from 50 mm (2″) to 100 mm (4″), with motor power options from 1.5 kW (2 HP) to 5.5 kW (7.5 HP).
