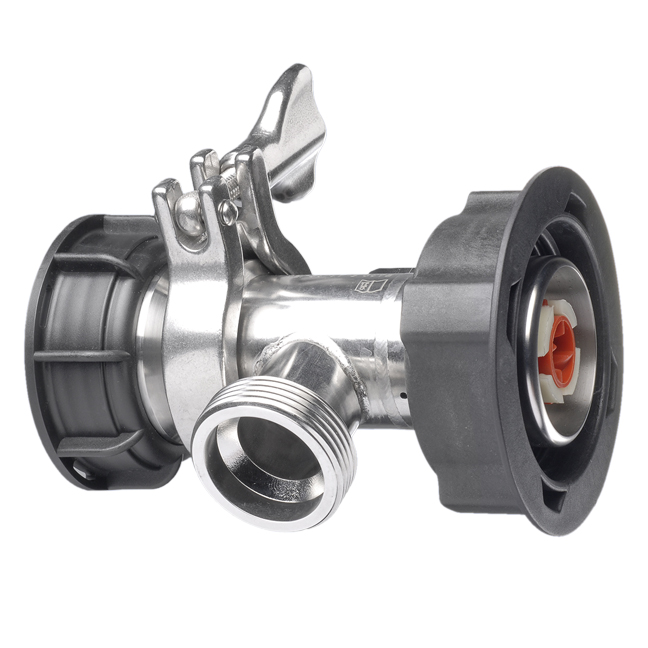

The horizontally installed, compact container pump MINIFLUX is designed for emptying IBCs via their floor-level outlet. Designed as an alternative to a vertical pump, the MINIFLUX can be used when an IBC is not accessible from the top. It is suitable for applications when gravity draining via the outlet tap is insufficient e.g. rapid dispensing or transfer to another container is in a higher location.
MINIFLUX
For horizontal use at the IBC
- Can be used where ceilings are low
- For pumping out of IBCs directly from the outlet (with standard S60 x 6 thread)
- Low overall weight of 1.2 kg
- Significantly higher flow rate and pressure compared to draining by gravity
- Suitable for use in hazardous areas zone 1
Industries Served
• Low concentrated acids and lyes
• Aqueous solutions
• Solvents
• Highly flammable liquids
• Mineral oil products
• Base materials for the cleaning agent production
• Diverse raw materials for the cosmetics production
• Flow rate: max. 240 l/min1
• Delivery head: max. 13 mwc2
• Viscosity: min. 1 mPas – max. 1000 mPas2
• Outer tube diameter: max. 41 mm
• Immersion length: für den horizontalen Einsatz
• Materials outer tube: Stainless steel
• Media / Fluids: Aqueous salt solutions, Highly flammable media, Petroleum products, Solvents
• Seal: with mechanical seal
• Container: 1000 l IBC, Container with floor drain
