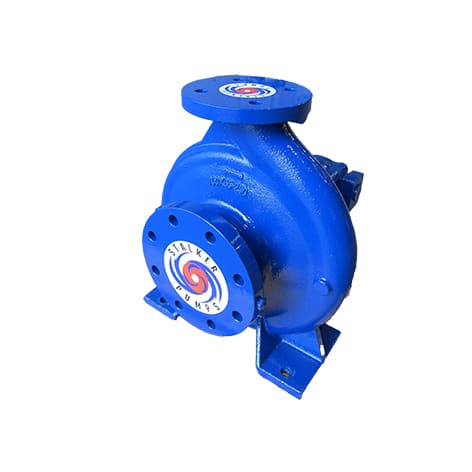

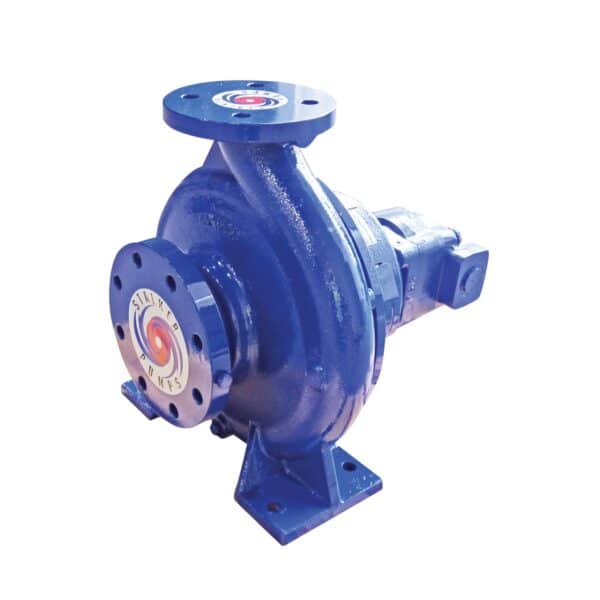

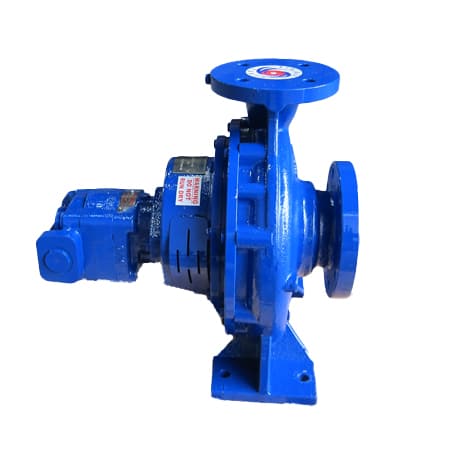

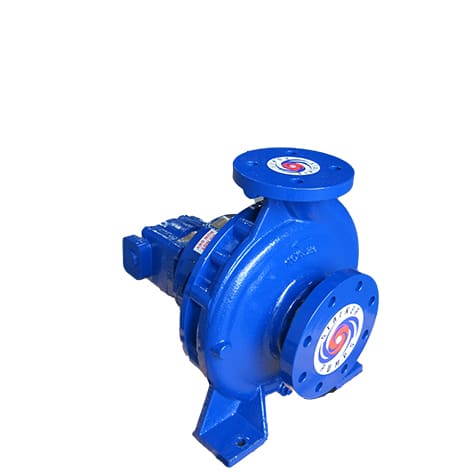

High quality hydrauically driven Stalker ISO pumps available in a number of different models/constructions with different sealing configurations to suit a multitude of applications.
Pump Casing (Volute/Backplate): Cast Iron
Impeller: Cast Iron
Pump Shaft: Stainless Steel 431
Fasteners: Grade 8.8 Zinc Plated
Mechanical Seal: Carbon/Ceramic/Nitrile
Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 65 NB AS2129 Table E
Discharge Size: 40 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 4.75l/s to 11.88 l/s
Flow Range (2400RPM): 5.25 l/s to 13.13 l/sec
Head Range (2000RPM): 42m to 52m
Head Range (2400RPM): 58m to 74m
Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 80 NB AS2129 Table E
Discharge Size: 50 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 7.875l/s to 19.69 l/s
Flow Range (2400RPM): 9.375 l/s to 23.44 l/sec
Head Range (2000RPM): 42m to 52m
Head Range (2400RPM): 58m to 74m
Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 100 NB AS2129 Table E
Discharge Size: 65 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 to 2400 RPM
Flow Range (2000RPM): 13.5 L/s to 33.75l/s
Flow Range (2400RPM): 16.25l/s to 40.63l/s
Head Range (2000RPM): 40m to 51m
Head Range (2400RPM): 58m to 73m
Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 100 NB AS2129 Table E
Discharge Size: 80 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 12.75L/s to 31.88l/s
Flow Range (2400RPM): 15.375l/s to 38.44l/s
Head Range (2000RPM): 14.5m to 20.5m
Head Range (2400RPM): 21m to 29.5m
Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 125 NB AS2129 Table E
Discharge Size: 100 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 27.5l/s to 68.75l/s
Head Range (2000RPM) : 24m to 33m
Flow Range (2400RPM): 35l/s to 87.5l/s
Head Range (2400RPM): 37m to 48m
Pump Type: ISO End Suction Centrifugal
Design: Back Pullout
Suction Size: 150 NB AS2129 Table E
Discharge Size: 125 NB AS2129 Table E
Impeller Type: Closed
Recommended Operating Speed: 2000 RPM to 2400 RPM
Flow Range (2000RPM): 45.5l/s to 113.8l/s
Head Range: 35m to 48m
Flow Range (2400RPM): 54.5l/s to 136.3l/s
Head Range (2400RPM): 50 to 70m
Key:
Recommended operating range
Low speed, low pressure
Model: GM130
Output Power: 16.66 kW
Oil Flow: 89 litres/min
Operating Speed: 2000 RPM
Output Torque: 79.62Nm
Gear Size-Inches: 1 1/4""
Motor Displacement: 40.3 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5 Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56.4 cc/rev
Low speed, low pressure
Model: GM130
Output Power: 16.66 kW
Oil Flow: 89 litres/min
Operating Speed: 2000 RPM
Output Torque: 79.62Nm
Gear Size-Inches: 1 1/4""
Motor Displacement: 40.3 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5 Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56.4 cc/rev
Low speed, low pressure
Model: GM131
Output Power: 30kW
Oil Flow: 125lpm
Operating Speed: 2000 RPM
Output Torque: 139.59 Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5Nm
Gear Size-Inches: 1 3/4""
Motor Displacement: 56.3cc/rev
Low speed, low pressure
Model: GM130
Output Power: 16.66 kW
Oil Flow: 89 litres/min
Operating Speed: 2000 RPM
Output Torque: 79.62Nm
Gear Size-Inches: 1 1/4""
Motor Displacement: 40.3 cc/rev
High Speed, High Pressure
Model: GM230
Output Power: 41.75kW
Oil Flow: 149 litres/min
Operating Speed: 2400 RPM
Output Torque: 167.5 Nm
Gear Size-Inches: 1 1/2""
Motor Displacement: 48.3 cc/rev
Medium speed, medium pressure
Model: GM176
Output Power: 82.03 kW
Oil Flow: 370 litres/min
Operating Speed: 2000 RPM
Output Torque: 414.71Nm
Gear Size-Inches: 2 1/2""
Motor Displacement: 168 cc/rev
Low speed, low pressure
Model: GM265
Output Power: 102.53 kW
Oil Flow: 312 litres/min
Operating Speed: 2400 RPM
Output Torque: 349.57 Nm
Gear Size-Inches: 2""
Motor Displacement: 118 cc/rev
Low speed, low pressure
Model: GM176
Output Power: 82.03 kW
Oil Flow: 370 litres/min
Operating Speed: 2000 RPM
Output Torque:414.71 Nm
Gear Size-Inches: 2 1/2""
Motor Displacement: 168 cc/rev
High speed, high pressure
Model: GM265
Output Power: 102.53 kW
Oil Flow: 312 litres/min
Operating Speed: 2400 RPM
Output Torque: 349.57 Nm
Gear Size-Inches: 2""
Motor Displacement: 118 cc/rev
