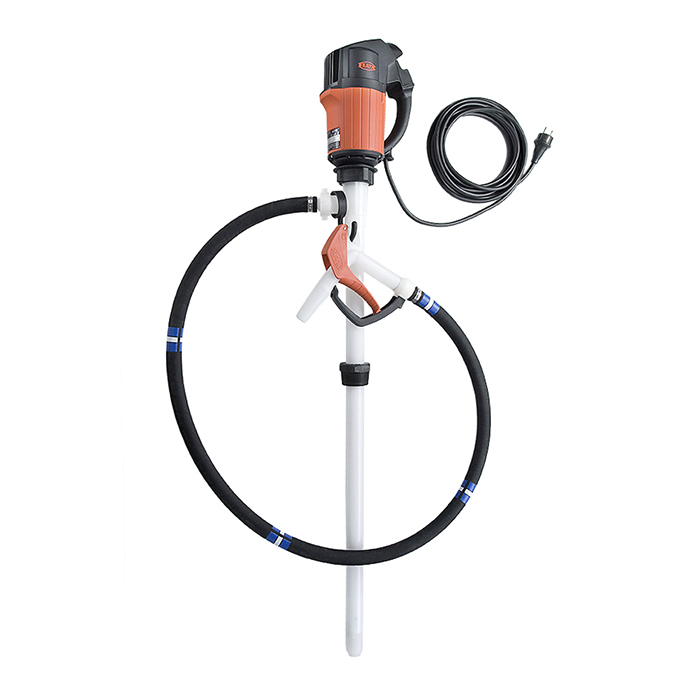

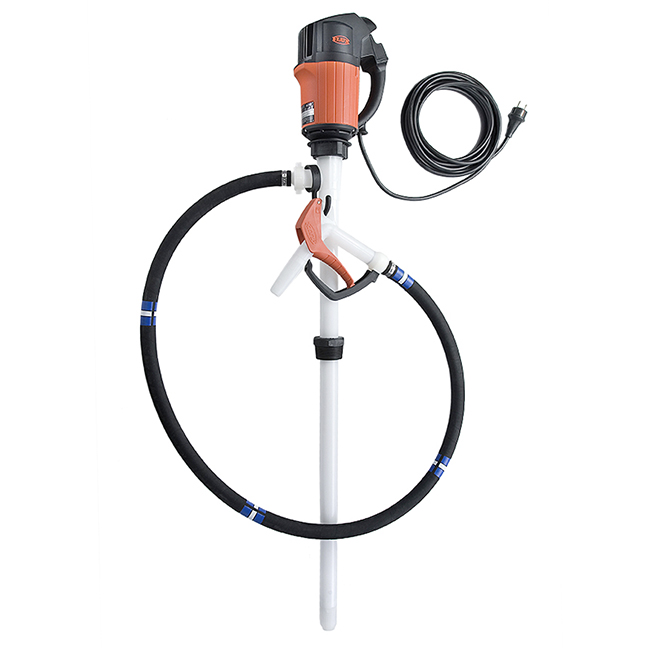

Pre-assembled pump set for pumping concentrated acids from 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430 with mechanical seal, outer tube in polyvinylidene fluoride and commutator motor F 458, hose, hand nozzle and compression gland.
Pump Kit F 430 / For concentrated acids
- No medium gets into the inner tube of the pump
- Robust motor with aluminium housing and special corrosion-resistant painting
- Pump can be quickly and easily cleaned
- Pump with mechanical seal
Industries Served
• Chloric acid
• Hydrofluoric acid (up to 40%)
• Sodium hypochlorite
• Nitric acid (up to 10%)
• Sulfuric acid (up to 90%)
• Flow rate: max. 40 l/min1
• Delivery head: max. 9,5 mwc
• Viscosity: min. 1 mPas – max. 600 mPas
• Outer tube diameter: max. 40 mm
• Immersion length: 1000, 1200
• Materials outer tube: Polyvinylidene fluoride
• Media / Fluids: Acids, Aqueous salt solutions
• Seal: with mechanical seal
• Container: 1000 l IBC, 200 l drums
1 The max. flow rate is achieved in the mentioned configuration with the medium water at 20°C and discharge height = height of outlet.
