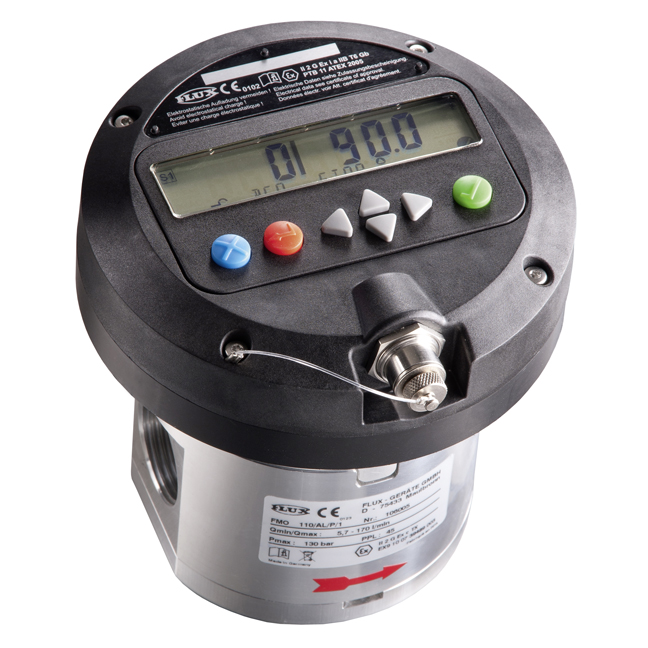

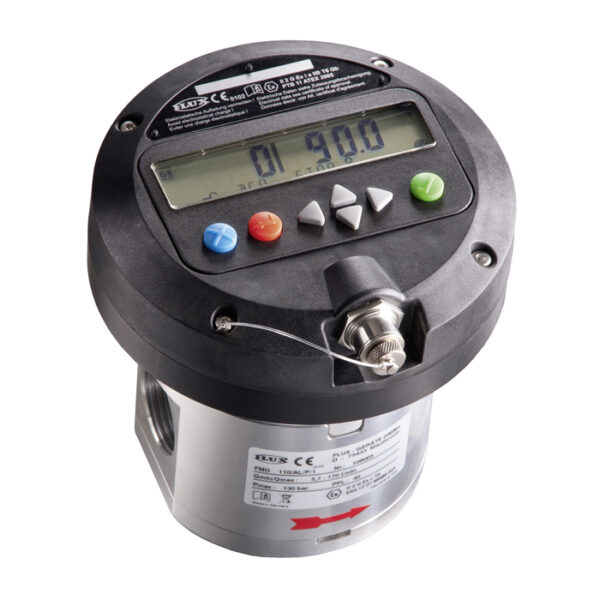

The flow meter FMO 104 built according to the oval rotor design is suitable for measuring pure, thin to highly viscous media. With the evaluation unit FLUXTRONIC® filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety. In automatic mode it is possible to output a signal for control purposes with the evaluation unit and the use of a switching amplifier.
FMO 104
Flow meter for 1 - 30 l/min
- Very precise dosing possible
- High resistancy
- Available in Version with FDA CFR 21
- Wide range of viscosities can be covered
- Low pressure loss
Industries Served
• Oils
• Gasoline
• Solvents
• Not self-lubricating media
• Flow rate: min. 1 l/min – max. 30 l/min
• Filling accuracy: +/- 0,5 %
• Operating pressure: max. 200 bar
• Viscosity: min. 1 mPas – max. 500.000 mPas
• Housing Materials: Aluminium, Stainless steel
• Media / Fluids: Acids, Alkalis, Fuels, Highly flammable media, Petroleum products, Solvents
