Suitable for conveying and circulating neutral or chemically aggressive fluids throughout the chemical industry and process engineering, electroplating, steel and stainless steel pickling lines, flue gas decontamination, exhaust air purification, water and waste water treatment.

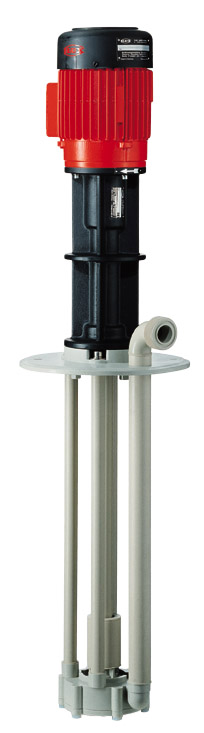

F 726
Stationary circulating and filter pump with impeller for delivery rates up to 750 l/min and extreme conditions of use.
- Four different sizes for different power ranges
- Suspended free-flying shaft without any bearings or seals in contact with the liquid
- Suitable for dry running
- Also available in version with support tube or alternatively with support bar
Industries Served
• Electroplating baths with e.g. copper sulphate, chromium, zinc electrolytes
• Chemically aggressive fluids such as inorganic and organic acids, alkalis, salts
Dimensional Drawing F726P1 135 without riser.pdf
Dimensional Drawing F726P1 185 square flange.pdf
Dimensional Drawing F726P2 115.pdf
Dimensional Drawing F726P2 115 Sonderflansch.pdf
Dimensional Drawing F726P2 115 square flange.pdf
Dimensional Drawing F726P2 115 without riser.pdf
Dimensional Drawing F726P2 135.pdf
Dimensional Drawing F726P2 135 special flange.pdf
Dimensional Drawing F726P2 135 square flange.pdf
Dimensional Drawing F726P2-135 without riser.pdf
Dimensional Drawing F726P2 185.pdf
Dimensional Drawing F726P2185 pressure flange.pdf
Dimensional Drawing F726P2 230.pdf
Dimensional Drawing F726P2 230 with riser DN50.pdf
• Flow rate: max. 750 l/min1
• Delivery head: max. 35 mwc1
• Viscosity: min. 1 mPas – max. 150 mPas1
• Diameter pump housing: max. 264 mm2
• Diameter mounting flanges: max. 250 mm2
• Materials outer tube: Polypropylene, Polyvinylidene fluoride
• Media / Fluids: Acids, Aggressive media, Alkalis
• Seal: Sealless in the liquid area
• Container: Tanks > 1000 liters
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
