For pumping large quantities of heavy flammable liquids from containers, tanks and open basins as well as for conveying chemically aggressive fluids throughout the chemical industry and process engineering. Versions with an open conical impeller or closed centrifugal impeller in different sizes for different power ranges.

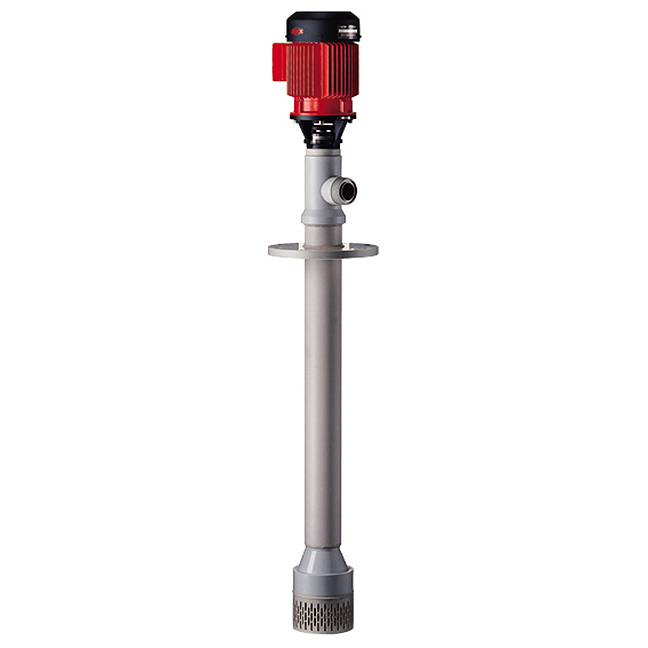

F 640 PP/PVDF / 185-230
Tank pump with impeller for delivery rates up to max. 700 l/min
- Suitable for tanks heights up to 4.1 m without bottom opening
- Motor replaceable
- Pump is hermetically tight
- Shaft seal with mechanical seal in ceramic oxide / SiC, O-rings in FKM
- For mobile and stationary use
Industries Served
• Anodizing solution
• Vegetable fibre suspension
• Water-based lacquers
• Alkaline pickling vats
• Industrial effluent
Pump Curves F640 AB 157 230.pdf
Dimensional Drawing F640 185 2000.pdf
Dimensional Drawing F640 185 2000 Pressure flange.pdf
Dimensional Drawing F640 – 185-2000_Standard.pdf
F640 Dimensional Drawing F640 185 2100.pdf
Dimensional Drawing F640 185-2100 Pressure flange.pdf
Dimensional Drawing F640 185 2100 Standard.pdf
Dimensional Drawing F640 230 2000.pdf
Dimensional Drawing F640 230 2000 Pressure flange.pdf
Dimensional Drawing F640 230 2000 Pressure flange.pdf
Dimensional Drawing F640 230 2000 Pressure flange reduce.pdf
Dimensional Drawing F640 2302000 Standard.pdf
Dimensional Drawing F640 230 2100.pdf
Dimensional Drawing F640 230 2100 1.pdf
Dimensional Drawing F640 230-2100 Pressure flange.pdf
•Flow rate: max. 700 l/min1
•Delivery head: max. 32 mwc1
•Viscosity: min. 1 mPas – max. 150 mPas1
•Diameter pump housing: max. 264 mm2
•Diameter mounting flanges: max. 340 mm2
•Materials outer tube: Polypropylene, Polyvinylidene fluoride
•Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
•Seal: mechanical seal
•Container: 1000 l IBC, Tanks > 1000 liters
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
