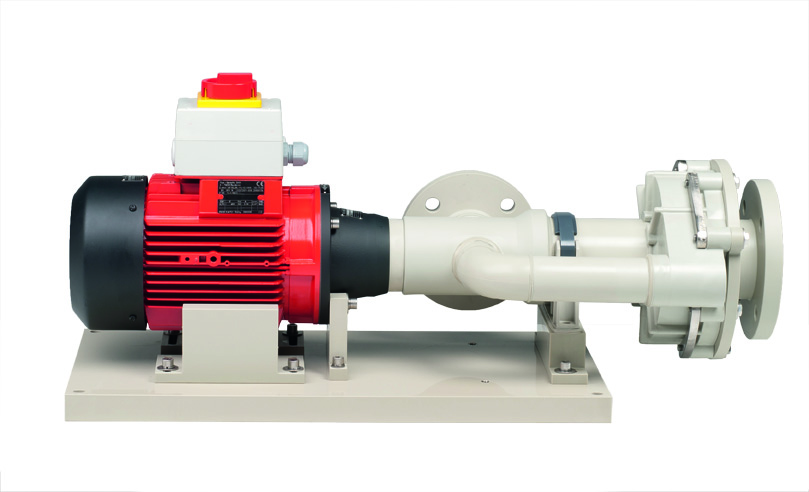

For pumping and conveying large quantities of heavy flammable liquids out of containers, tanks and open containers. The pump is used either horizontally mounted onto a base plate or fixed vertically.

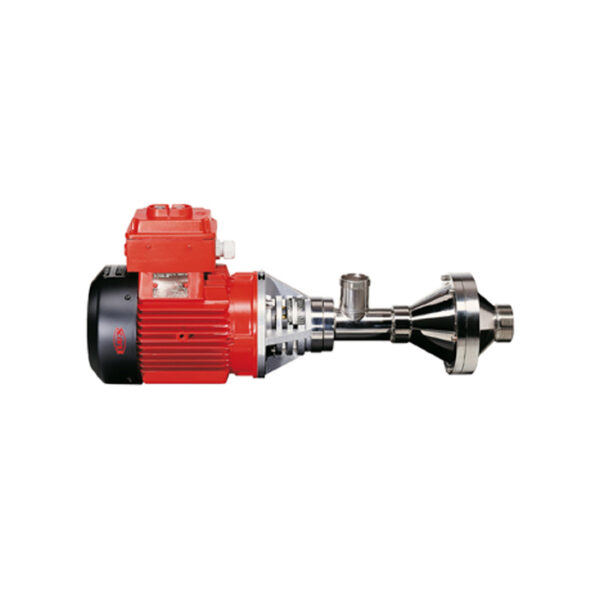

F 620 TR
For horizontal use
- Can be used horizontally or vertically
- Pumps also fluids containing solids
- Motor can be changed
- Pump is hermetically sealed
- For mobile and stationary use
Industries Served
• Anodizing solution
• Vegetable fibre suspension
• Water-based lacquers
• Alkaline pickling vats
• Industrial effluent
•Flow rate: max. 383 l/min1
•Delivery head: max. 12 mwc1
•Viscosity: min. 1 mPas – max. 2500 mPas1
•Diameter pump housing: max. 30 mm2
•Diameter mounting flanges: max. 185 mm2
•Materials outer tube: Stainless steel
•Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
•Seal: mechanical seal
•Container: Tanks > 1000 liters
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
