To pump heavy flammable liquids from containers, tanks and open containers. The pump is available in two versions with open conical impeller or a closed centrifugal impeller in different sizes.

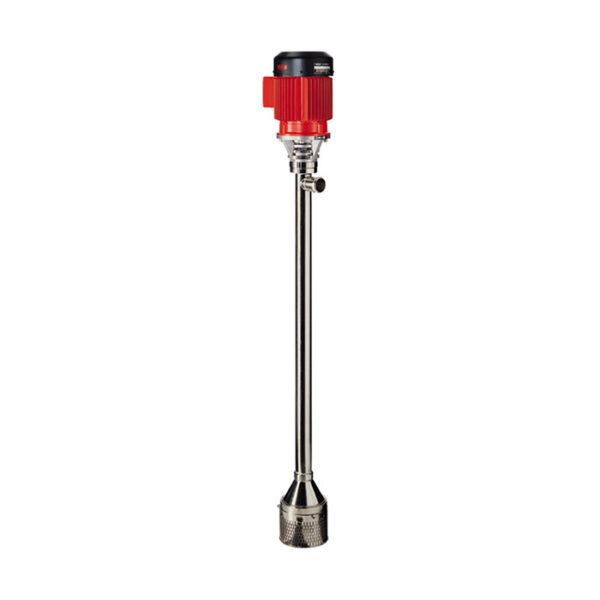

F 620
Tank pump with conical rotor or impeller for delivery rates up to max. 383 l/min
- Suitable for tanks heights up to 4.1 m without bottom opening
- Pumps also fluids containing solids
- Available with open conical rotor or closed impeller
- Consisting of an inner and outer tube as well as the drive shaft that is mounted in the inner tube
- For mobile and stationary use
Industries Served
• Anodizing solution
• Vegetable fibre suspension
• Water-based lacquers
• Alkaline pickling vats
• Industrial effluent
Pump Curves F620 S 157 3 210 50 pdf
Pump Curves F620 S 157 5 210 50 hz.pdf
Dimensional Drawings F620S-1.pdf
Dimensional Drawing F620S-30.pdf
Dimensional Drawing F620S-157-3+5-210.pdf
Dimensional Drawing 20S 157 3+5 210.pdf
• Flow rate: max. 383 l/min1
• Delivery head: max. 12 mwc1
• Viscosity: min. 1 mPas – max. 2500 mPas1
• Diameter pump housing: max. 140 mm2
• Diameter mounting flanges: max. 265 mm2
• Materials outer tube: Stainless steel
• Media / Fluids: Acids, AdBlue®, Alkalis, Fuels
• Seal: mechanical seal
• Container: 1000 l IBC, Tanks > 1000 liters
Please contact one of our expert advisors or contact person in the office for an optimal motor dimensioning.
