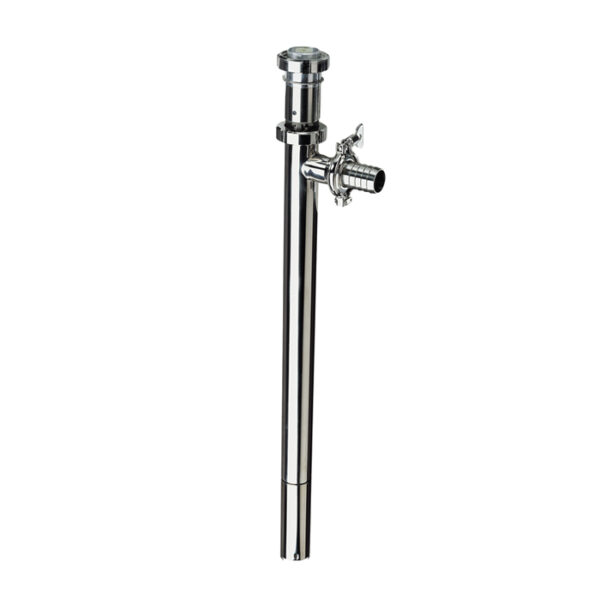

The FLUX eccentric worm-drive pump F 560 GS in version with planetary gear is used to pump thin to medium viscous media up to 30.000 mPas. The pump is specially designed to meet the specific requirements of the food, cosmetic and pharmaceutical industries and works with little turbulences, at constant pressure and ensures a smooth, pulsation-free pumping. The pump can be used mobile and stationary with only a few components and can be easily dismantled.
F 560 GS
For the hygienic application in version with planetary gear up to max. 30.000 mPas
- Optimal for viscous self-flowing media
- suitable for shear-sensitive media
- Suitable for shear-sensitive media
- Available with 3A-certification
- Smooth pumping of the liquid with very little turbulences
Industries Served
• Pharmaceutical ingredients
• Cosmetic products
• Vaseline
Dimensional Drawing F560GS1+2+3-FOOD_54-26_1014.pdf
Dimensional Drawing F6GS1+2+3-FOOD_50-21_1014.pdf
Dimensional Drawing F560 GSX_50-21.pdf
Dimensional Drawing F560 GSX_54-26.pdf
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 30000 mPas1
• Outer tube diameter: min. 50 mm – max. 54 mm2
• Immersion length: 700, 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Viscous media
• Seal: closed mechanical seal
• Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters
Commutator motor
FEM 4070
F 457/ F 457 EL
F 458/F 458 EL
F 460 Ex/ F 460 Ex EL
F 458-1 / F 460-1 Ex
Brushless motor
FBM 4000 Ex
Three-phase gear motor
F 414
Compressed-air motor
F 416 Ex / F 416-1 Ex / F 416-2 Ex
