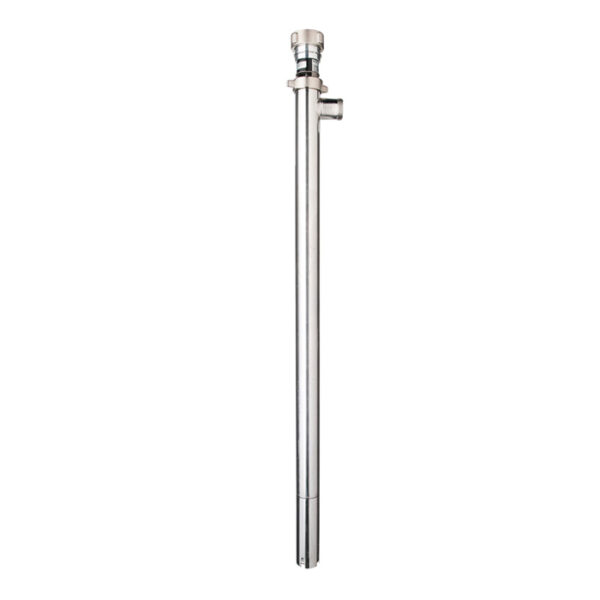

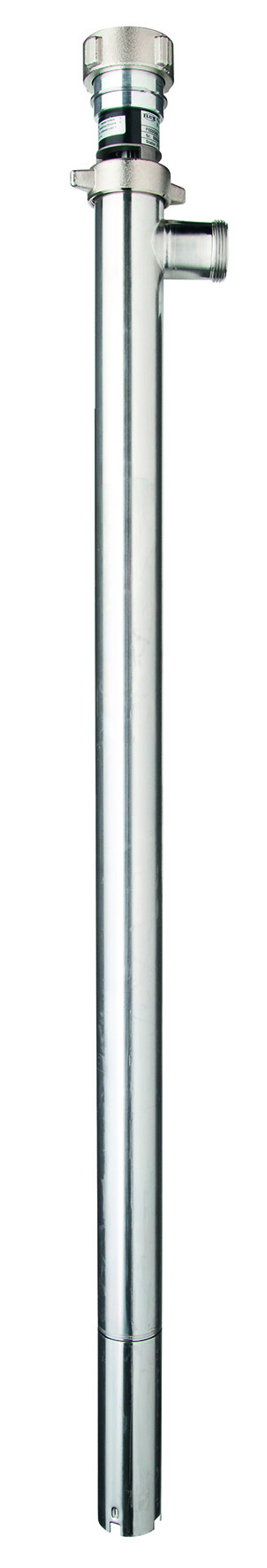

The FLUX eccentric worm-drive pump F 550 GS with planetary gear is suitable to pump thin to medium viscous media. The positive displacement pump works smoothly at constant pressure and ensures a gentle, pulsation-free pumping. The pump can be used mobile or stationary it has only a few components and can be easily dismantled.
F 550 GS
For the industrial application in version with planetary gear for medias up to max. 30.000 mPas
- Wide range of viscosity can be covered
- Positive displacement pump
- Smooth pumping and with very little turbulences
- Flow rate adjustable (in combination with frequency-controlled three-phase motor)
- Can be adjusted individually on the media's characteristics
Industries Served
• Vegetable oils
• Paints and varnishes
• Gluten
• Solder pastes
• Flow rate: max. 50 l/min1
• Flow pressure: max. 8 bar1
• Delivery head: max. 80 mwc1
• Viscosity: min. 1 mPas – max. 30000 mPas1
• Outer tube diameter: min. 50 mm – max. 54 mm2
• Immersion length: 700, 1000, 1200
• Materials outer tube: Stainless steel
• Media / Fluids: Highly flammable media, Petroleum products, Solvents, Thin media
• Seal: open mechanical seal
• Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters
Commutator motors
FEM 4070
F 457 / F 457 EL
F 458 / F 458 EL
F 460 Ex / F 460 Ex EL
F 458-1 / F 460-1 Ex
Brushless motor
FBM 4000 Ex
Three-phase gear motor
F 403
F 414
Compressed air motor
F 416 Ex / F 416-1 Ex / F 416-2 Ex
